Eddy Current Sorter is Sturdy, Light weight and portable test unit with a adjustable handle. Powered from single phase,220V AC, 50Hz source. The unit offer both sine wave and LCD Display. A ten (10) position rotary band switch (frequency from 10 Hz to 10000 Hz), two threshold level controls to set upper and lower limits of acceptance, a phase control to adjust the 10° to 170° phase of the sine wave. Three level indicators (Red for upper rejection, Green for acceptance and Blue for Lower rejection) to indicate three different groups according to limits of acceptance set, an additional indicators (amber) to indicate improper setting of bridge volt and frequency by blinking. This machine is for quick fault identification and easy maintenance and has all the components with reliability durability and perfect functioning.
TECHNICAL SPECIFICATIONS :
Input Supply  : Single phase 230V AC, 50 Hz
Power Consumption : 40 Watts (approx.)
Dimension (Lx W x H)  :  450 mm X 340mm X 160mm
Screen (Monitor) Size  :  70mm x 65 mm with LCD Display
Mode of Operation  :  : Sine/Ellipse both mode.
Receptacle  :  For external remote alarm & Indication
Test Frequency  :  10 Hz to 10000 Hz in ten steps
Sensitivity  :  Increasing in five steps
Phase Control  :  to adjust sine wave at 10° to 170°
Threshold I & II  :  to control upper limited & lower limit respectively
Bridge Volte  :  Increasing the bridge volt in five steps
Coil Balance  :  to balance the coil Impedance.
Gain Control  :  Low to High gain amplification for test sensitivity


SCOPE OF SUPPLY :
⦁ Probe (Coil) size as per your Sample (1 Set of 2 Nos.)
⦁ Power cord
⦁ Operating Manual
⦁ Certificate of Calibration

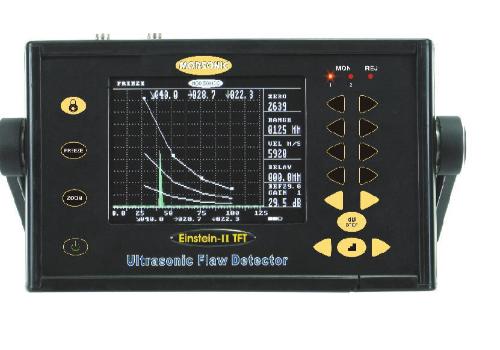

SALIENT FEATURES :
⦁ Very handy and light in weight (only 2.3 kgs. with battery)
⦁ TFT(Colour LCD) provides wide viewing angle and allows fast scanning speed.
⦁ Very long battery operation of 8 hours between charges
⦁ Digital plotting of DAC curves with automatic -6dB and -14dB curves
⦁ Very low noise level even at very high gain

SALIENT FEATURES :
⦁ Built-in DGS/AVG curves for time proven flaw size evaluation
⦁ It has TCG (Time Controlled Gain) which compensates for amplitude decay with distance.
  A very useful feature
⦁ Dynamic DAC curves which allow change of Test Range and Gain after plotting them
⦁ Built-in software for evaluation as per AWS standard

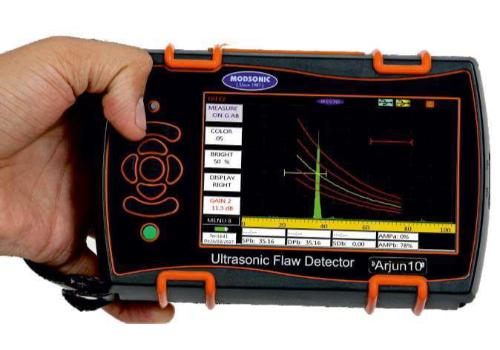

Palmtop, Ultra Light Digital Ultrasonic Flaw Detector Arjun10,One Hand Operation, Only Few Keys For User Friendly Operation, High Resolution WVGA Display , Auto Plotting Dynamic DAC, USB Communication Port, Unlimited Data Storage On Removable Micro SD Card, Square Wave pulsar with very

ADVANCED FEATURES LIKE :
⦁ Test Range – 2.5 mm to 5 meter (in steel)
⦁ Measurement Resolution – 0.01mm
⦁ One hand Operation (Weighs only 800 gram with battery).
⦁ Note/Label can be attached with each of A-scan data. .
⦁  Frequency 0.5 MHZ to 15 MHZ (Wideband)
⦁  Amplitude Measurement up to 110%
⦁  Options of display background colors including black And white for day light viewing
⦁  Peak Freeze / Echo Dynamic feature
⦁  Reference A-scan pattern of standard test object can saved and recalled in the background
  for easy comparisons during testing

“Arjun30 - The Recordable Ultrasonic Flaw Detector”, palmtop, ultra light, one hand operation, only few keys for user friendly operation, high resolution WVGA display, Auto plotting Dynamic DAC, USB communication port, Unlimited data storage on removable Micro SD card, square wave pulsar with very advanced features like:

ADVANCED FEATURES LIKE :
⦁ Test Range – 2.5 mm to 10 meter (in steel)
⦁ Measurement Resolution – 0.01mm
⦁ One hand Operation (Weighs only 800 gram with battery).
⦁ Note/Label can be attached with each of A-scan data. .
⦁  Frequency 0.5 MHZ to 15 MHZ (Wideband)
⦁  Amplitude Measurement up to 110%
⦁  Options of display background colors including black And white for day light viewing
⦁  Peak Freeze / Echo Dynamic feature

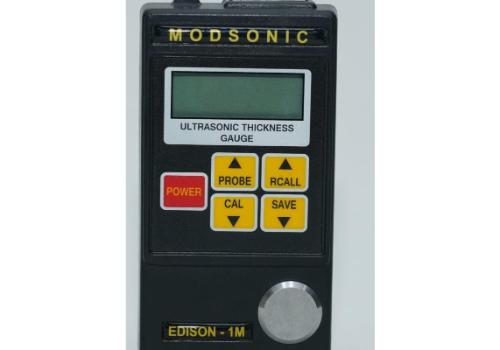

MICROPROCESSOR BASED ULTRASONIC THICKNESS GAUGE MODEL EDISON – 1 WITH LCD DISPLAY (Specification as per leaflet enclosed) This is a micro controller based, pocket sized instrument features, sealed touch key pad and built in calibration blocks with a large LCD display. It also features one step calibration and operates on Two AA Batteries includes the following. Display Resolution: 0.1mm

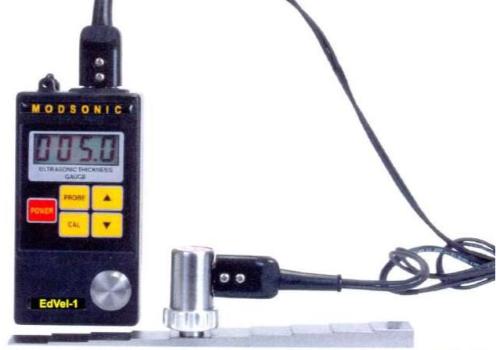

EdVel-1 - Microprocessor based Ultrasonic VELOCITY METER (For direct measurement of Sound Velocity in material) with LCD type display, inclusive of following accessories.

a) DT-201 - Standard probe: Dual type for general purpose applications.
(Frequency : 5 MHz. Contact face dia:12.5 mm)
b) DT-231 - Probe Cable (double, co-axial, 1.5 Met. Length, with LEMO Plugs)
c) DT-273 - Carrying/storage case(special, foam fitted wooden case)
d) ET-271 - Protective Instrument Cover
e) ET-341 - Rechargeable Ni-MH batteries (Qty: 1 set) ( 1 set = 2 Nos.)
f) ET-245 - Battery Charger for ET-341 above.
g) - Operation Manual
h) - “Test and Calibration Certificate” with traceability to NABL

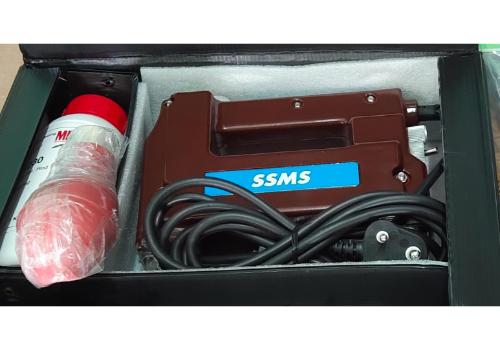

TECHNICAL SPECIFICATIONS :
Type  :  Portable
Dimension of carrying case : L x W x H = 440 mm x 330 mm x125mm (approx)
Weight of Yoke  :  3.5 Kg (approx)
Weight of Complete Kit  :  6.2 Kg(approx)
Pole Spacing  :  0 to 300mm through articulated legs
Pole Face Area  :  25mm x 25mm
Power Supply  :  230 V ± 30 V, Single Phase, 50 Hz,5 Amps A.C.
Input Current  :  4 Amps(max)
Magnetisation  :  Longitudinal
Magnetic Field  :  A.C.; Constant, H.W.D.C,; Variable
Flux Density  :  Approx, 10600 lines of force/cm² at 100mm pole spacing

Controls  : 
i) Push Button On-Off for Operation
ii) Toggle Switch for A.C. / HWDC selection
iii) Potentiometer for Infinite Step(Step less) HW DC Field variation

Lifting Power  : 
a) H.W.D.C.: 28 Kg at 100 mm spacing
b) A.C. :  5 Kg at 100 mm spacing

Duty Cycle  :  50% on 5 Minutes time cycle
Bump Test for Kit  :  Withstands 40 g, 4000 bumps
Test Process  :  Dry or Wet
Test Method  :  Continuous or Residual
Test Technique  :  Yoke Magnetization
Test Particles  :  Visible, under white light Fluorescent, under Black Light
Application of Particles  :  By Squeeze Bottle or Dry Powder Bulb
Demagnetization  :  By A.C. Flux Reduction Method

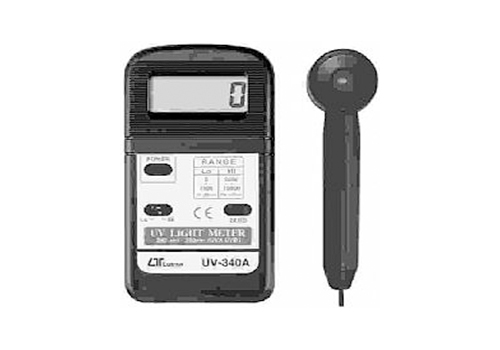

UV LIGHT METER, pocket
Model: UV-340 A
TECHNICAL SPECIFICATION :
⦁ Spectrum: 290 nm - 390 nm
⦁ Application: UVA & UVB measurement.
⦁ 2 ranges: 1999 W/cm2 x 1 W/cm2. 19990 W/cm2 x 10 W/cm2.
⦁ Pocket size.
⦁  Separate probe easy operation.
⦁  Including Test & Calibration Certificate

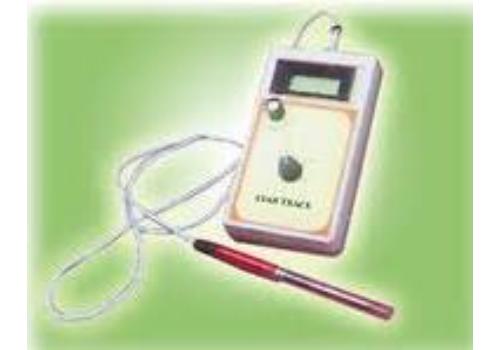

Portable Gauss meter type ESC 18B is a compact battery operated equipment designed for field use where it is inconvenient or impossible to use a mains operated instrument. If works off one built-in 9 volt battery. The display employed is a low consumption 31/2 digit LCD display which ensures a long period of working life. The equipment is very light and compact hand-held non magnetic plastic case. Likely areas if its use is for measurement of magnetic flux density over the face of large magnets, field use where mains supply cannot be readily be made available and cramped places where a larger mains operated instrument cannot be employed. In spite of its compact size, the instrument has wide flux density coverage from I gauss to 19.99 kilogauss covered in two ranges.

SPECIFICATIONS :
⦁ Type : ESC – 18B
⦁ Power Supply : 9 V battery type 6F22 or equivalent.
⦁ Measuring Ranges : 1 gauss to 2000 gauss on x 1 range 10 gauss to 20K gausses on x 10 range
⦁ Display : 3½ digit LCD display.
⦁  Resolution : ± 1% of reading + 1 digit on x 1 range. ± 2% of reading + 1 digital on x 10 range.
⦁  Battery life : 20 hours continues
⦁  Sensor : Semiconductor Hall Effect sensor fitted on a radial leaf type carrier Provided with a protective plastic over and handle. The Hall-Probe is connected to the instrument via a 4 core 1M long flexible cable provided with a 5 pin plug and socket.
⦁  Size : 180 mm wide X 100 mm high X 50 mm.

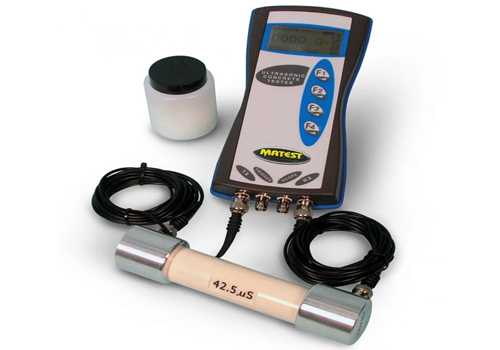

Measuring range: 0 – 3000 µs – accuracy +/- 0,1 µs • Selection of the ultrasonic pulse amplitude adjustable from 250 to 1000V • Measurement of the required time by the ultrasonic pulse to go through the tested material. • Single or continuous acquisition mode with automatic or manual saving. • Zero calibration with depuration of the time for the pulse to go through the probes. • Calibration of a defined time value. Capacity of data acquisition, processing and filing of the test data up to 30.000 samples. • Interface mini USB for PC connection. • Two outlets for connection to the oscilloscope. • Languages: English, French, German, Spanish, Italian. • The use of the instrument is made easy because it is based on the user-friendly system SPECIFICATIONS :
⦁ Type : ESC – 18B
⦁ Power Supply : 9 V battery type 6F22 or equivalent.
⦁ Measuring Ranges : 1 gauss to 2000 gauss on x 1 range 10 gauss to 20K gausses on x 10 range
⦁ Display : 3½ digit LCD display.
⦁  Resolution : ± 1% of reading + 1 digit on x 1 range. ± 2% of reading + 1 digital on x 10 range.
⦁  Battery life : 20 hours continues
⦁  Sensor : Semiconductor Hall Effect sensor fitted on a radial leaf type carrier Provided with a protective plastic over and handle. The Hall-Probe is connected to the instrument via a 4 core 1M long flexible cable provided with a 5 pin plug and socket.
⦁  Size : 180 mm wide X 100 mm high X 50 mm.

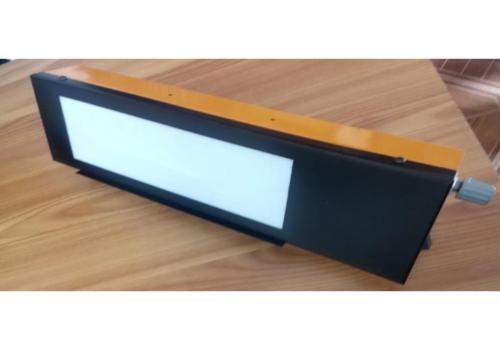

⦁ Portable LED RT Film Viewer with variabl Intensity Control including Cooling Fans 02 Nos.
⦁ Pedestal Switch. Total Length 15.5”, Width 2” &  Breadth 3.5”
⦁ Viewing area Total Length 8.5” & Breadth 2.5”
