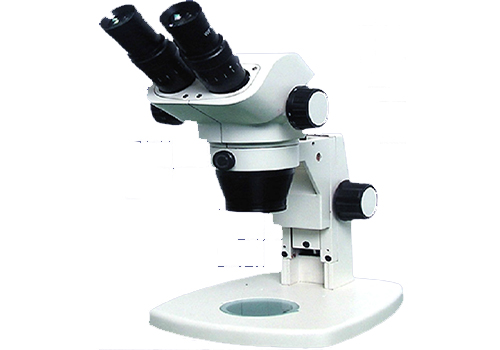

⦁ Observation head inclined at 45° rotatable at 360°.
⦁ Vertical phototube for micro photography.
⦁ Diopter adjustment ring on ocular tube(±5).
⦁ Interpupillary distance from 52mm to 76mm.


EYEPIECE ( ANTI FUNGUS ) : Wide field 10X (paired) F.O.V. 22mm.
ZOOMING RANGE & RATIO : Zoom 0.8X to 10.0X with magnification ratio of 1:6.3
MAGNIFICATION RANGE : 8X-50X.
WORKING DISTANCE : 115 mm.

MECHANICAL BODY
⦁ Track stand with fan type base.
⦁ Lateral zoom control movement.
⦁  Clip for holding specimen.
⦁ Base size is 285mm X 258mm.

ILLUMINATION SYSTEM
⦁  Incident and transmitted light systems with LED lamps.
⦁ Both lights are regulated with power supply and has separate brightness controls.

STANDARD ACCESSORIES
Operating manual, dust cover, guarantee card and Styrofoam molded pack. 0.5X AUXULLURY LENS

DIGITAL USB CMOS MICROSCOPE CAMERA MODEL : DGI 510
Features:
⦁  5.0 megapixels with progressive scanning CMOS image sensor.
⦁ No compression, no interpolation.
⦁  Support still image capture(JPG,BMP)
⦁ Standard C-Mount makes connection to any microscope easy. Macro lens setups are also supported
⦁  Resolution: 2592X1944(8bi);480 Mibt/Sec,DC5V±5%
⦁  Pixel size : 2.2mmX2.2mm.
⦁  Frame Rate .8fps@2592X1944 30 fps@640 ×480 Auto White Balance.
⦁  Shutter Electronic10μs–32ms,Auto exposure
⦁  Operating Temp: 0°C ~ 60°C


DEWINTER CALIPER PLUS SOFTWARE
SPECIFICATIONS
Image Editing
Cut/Copy/Paste, selected copy by free hand AOL. Resize, Crop/Duplicate/restore, conversion to other format like BMP,JPG,TIF, Annotation like, free hand drawing, straight line, square, Circle, arrow, Text, highlighter etc, pointer, eraser.
VIEW
Zoom in/Zoom out, rotation 90°, 180°,27°, horizontal flip/vertical flip, Redo/Undo, Intensity histogram.
IMAGE PROCESSING
Background subtraction, contrast enhancement, boolean math, ADD,OR,XOR etc.
ROUTINE FILTERS
Invert, Brightness, Contrast, Hue, Saturation, Blur. Noise removal, Gamma RGB, etc.
EDGE DETECTION & MORPHOLOGY FUNCTION
Laplacing, sobel, Kirsh, Skelotizing, pruning, histograme equalization, histogram smoothing etc.
MEASUREMENT
a) Spartial calibration
b) Line measurements for Distance, Length, Width, Perimeter, Angle, Three Point Radius.
c) Area by enclosed line controlled by four arrow keys available on keyboard arrows with zoomed preview.

COUNT & CLASSIFICATION
Identification of objects in an image, count them, obtain several features measurements. Objects identification by user or automatically. User defined classification on basis of size or intensity.
THRESHOLD PARTICLE MEASUREMENT :
Manual, Auto bright and Auto dark methods to identity intensity range defined object to be measured. Various calculation & measurements available for selected Particle are; Dimensions, Area, Perimeter, Ferrite Length, Min/Max Radius, Thread Length, Thread Width, Fiber Length, Fiber Width.Depth
SEGMENTATION
Measure area fraction & volume fraction. Identify multiple phases within Microstructure. Also delineate phases from the histogram.
REPORT
a) Three options: Direct printout with original image processed Image & Tabular results Export to MS Office or Excel for further modification.
b) Line measurements for Distance, Length, Width, Perimeter, Angle, Three Point Radius.
c) Area by enclosed line controlled by four arrow keys available on keyboard arrows with zoomed preview.
COUNT & CLASSIFICATION
Identification of objects in an image, count them, obtain several features measurements.
Objects identification by user or automatically. User defined classification on basis of size or intensity.
THRESHOLD PARTICLE MEASUREMENT :
Manual, Auto bright and Auto dark methods to identity intensity range defined object to be measured. Various calculation & measurements available for selected Particle are; Dimensions, Area, Perimeter, Ferrite Length, Min/Max Radius, Thread Length, Thread Width, Fiber Length, Fiber Width.Depth
SEGMENTATION
Measure area fraction & volume fraction. Identify multiple phases within Microstructure. Also delineate phases from the histogram.
REPORT
a) Three options: Direct printout with original image processed Image & Tabular results Export to MS Office or Excel for further modification.

The outer chamber of the furnace is made of Mild Steel sheets and sections finished with powder coating. The furnace has a well – insulated flap Door with a Spy hole for viewing the inner chamber without opening the Door. The Furnace is suitable for Bench mounting.

The inner chamber of the furnace is made of smooth surface Sillimanite Muffle. the Heading is by means of imported „A1‟ Kanthal heating element wound in form of coil and provided all round the inner chamber for faster heating and lesser currant consumption. The gap between the outer and the inner chamber is insulated with a thick layer of high density Ceramic Fibre Wool Insulation.

The Terminal connections will be provided in a separate chamber at the back side of the furnace for easy maintenance a safety protection thermal fuse is provided to prevent the heating element from accidental heating. A fume exhaust will be provided at the back side of the furnace.

The control panel fixed at the right side of the furnace consists of an Indian Digital Temperature controller with a Chromel / Alumel. Thermocouple for automatic temperature control, On / Off switch a magnetic contractor indicating lamps and 2 meters of three Core Cable for operation at 230 Volts, Single phases, 50 Hz, AC Mains.

SPECIFICATIONS:

Maximum temperature up to 1200°C and safe recommended working temperature should not exceed 1100°C.

SALIENT FEATURES :

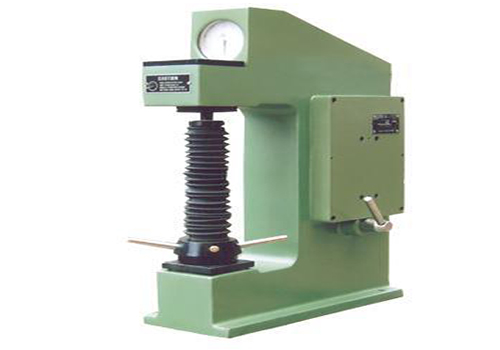

This machine is suitable for testing hardness of metals & alloys of all kinds of hard or soft, whether flat, round or irregular in shape. This machine is simple in design and very easy to operate, yet sensitive and accurate. This is conforming to IS: 3804-1988, BS: 891 parts 1 & 2, ASTM: E18

TECHNICAL DATA :
Automatic load selection with automatic zero setting dial gauge. Manual Operation.

Load : 60,100,150 kgf
Initial Load : 10 kgf
Maximum Test Height : 230 mm
Depth of throat : 133mm
Max. Depth of elevating screw below base : 240 mm
Size of Base (Approx) : 171 x 423 mm
Machine Height : 635 mm
Net Weight (Approx.) : 75 kg

Standard Accessories: -

Dial Gauge dia 80 mm : 1 pc
Testing table 50 mm dia : 1 pc
Testing table 38 mm dia with „V‟ groove
for round jobs 6 to 30 mm dia : 1 pc
Diamond Indentor 120 C : 1 pc
Steel Ball Indentor 1/16 “ : 1 pc
Test Block Rockwell „C‟ : 1 pc
Test Block Rockwell „B‟ : 1 pc
Weights 60,100 & 150 kgf Cast Iron : 1 set
Accessories kit Box : 1 pc
Telescopic sleeve for screw protection : 1 pc
Instruction Manual : 1 pc

The machines are built with fully enclosed having cast iron body. These are Seasoned and precisely calibrated for accuracy. The Special clamping cone Holds the job firmly and avoids slippages. This also protects the Indentor. The dial gauge is covered by transparent glass cover. It protects from dust and damages. The loading is by square threaded Screw and unloading is by eccentric lever while penetration is Hydraulic.

TECHNICAL SPECIFICATIONS :
Major load : 60,100,150,187.5 & 250 kgf
Max. Test Height in mm : 250 +/- 5
Depth of Throat in mm : 150 +/- 5
Automatic load selector provided at right side of the machine. Auto zero setting type gauge. 60,100,150,187.5&250
kgf major load. To check Rockwell A,B & C scale and Brinell scale with ball dia 2.5mm & 5mm & 187.5 & 250 kgf
load. Supplied with the following Standard Accessories. Standard Accessories:-
Testing table 50 mm. Ø : 1 No
Testing table 38 mm. Ø with „V‟ groove
For round jobs 6 to 30mm Ø : 1 No
Diamond Indentor 120º : 1 No
Steel Ball Indentor 1/16” : 1 No
Test Block Rockwell „C‟ : 1 No
Test Block Rockwell „B‟ : 1 No
Allen Spanners : 1 set
Clamping Device : 1 No
Dash Pot Oil : 1 No
Rubber Bellow for elevating screw protection : 1 No
Instruction Manual : 1 No

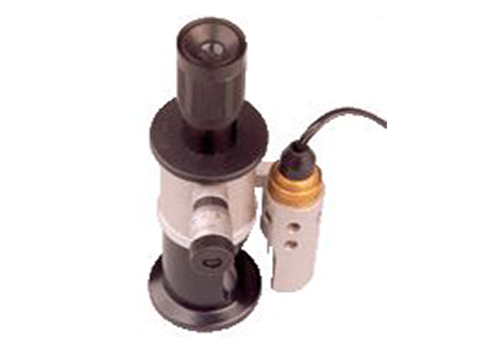

Brinell Microscope : 1 No

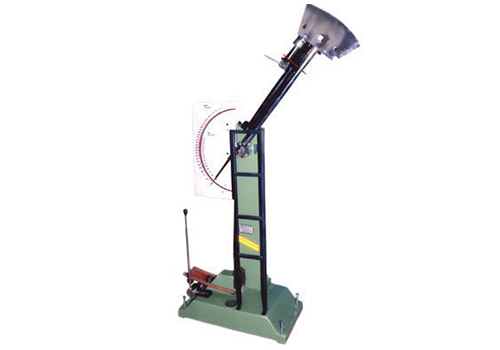

We offer highly advanced Impact Testing Machine for the clients both in domestic and international market. The pendulum impact tester manufactured is designed for conducting Izod and Charpy test. These machines are designed in conformation to IS 1598, IS 1757, IS 1499 & BS 131 as well as ASTM – E – 23 and plastic impact as per IS 867 & ASTM – D – 256.

CHARPY TEST
The Charpy test piece rests on alloy steel supports anvils fitted on the base of the machine rigidly held in position by alien screws. End stopper is provided for quickly & accurately locating the test piece centrally between the supports.

IZOD TEST
The Izod test piece is clamped vertically in Izod support anvils, fitted on the base of the machine. The support is provided with a machined vertical groove to suit the test piece size. The front clamp piece & alien screw enable clamping of the test piece in correct height with the help of Izod setting gauge supplied.

TECHNICAL SPECIFICATIONS :

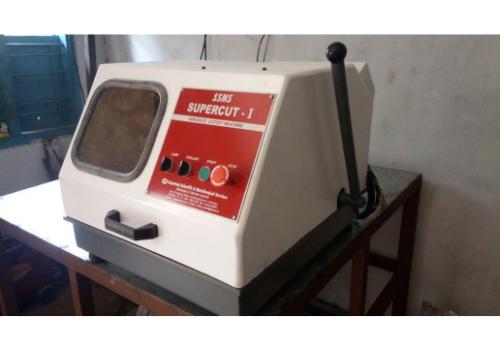

Double threaded Vise 4” design. X 200mm & Y 300mm.Fully enclosed Floor Model with FRP Top, 3 Phase, 7.5HP Motor,3000 RPM, Mild Steel Base, Power 50 Hz, 415 Volts, Cutting Capacity Dia. 100mm. Coolant tank with 40 Litres capacity. Bright CFL illumination. High flow of coolant water Jet. Cutting action to be done by Manual. With Limit switch provision to stop the motor, if FRP Top cover, opened by operator during cutting operation.
